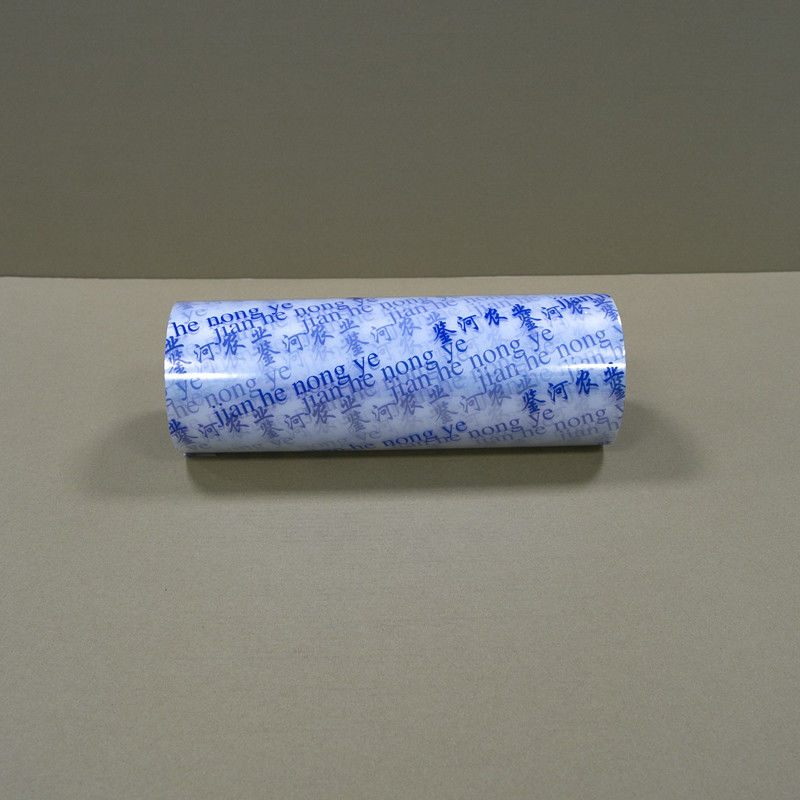

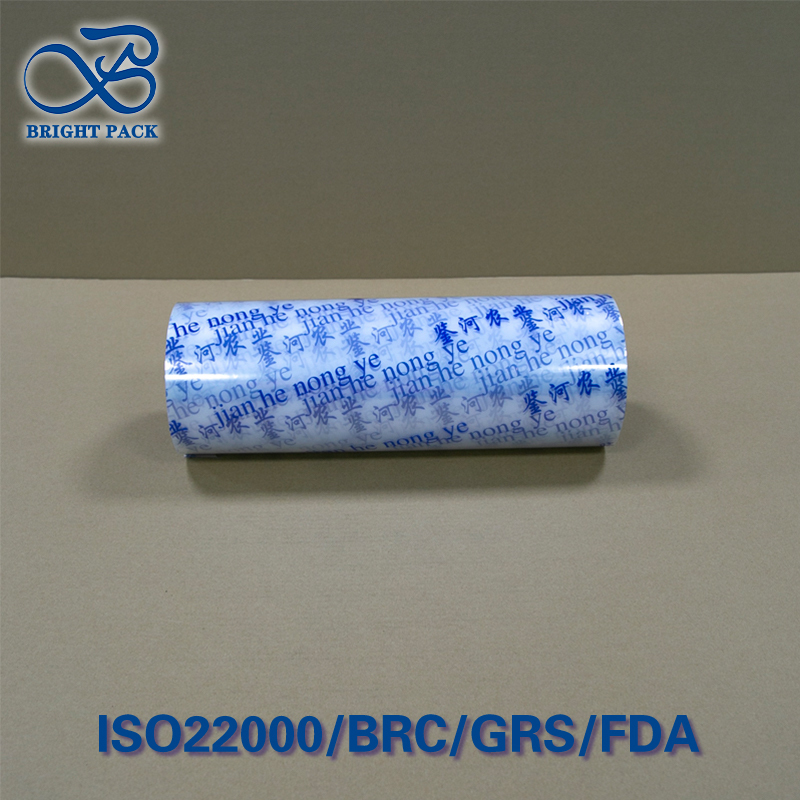

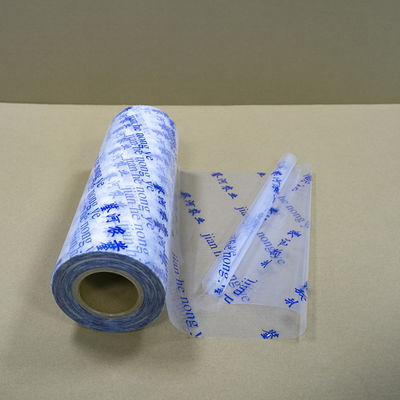

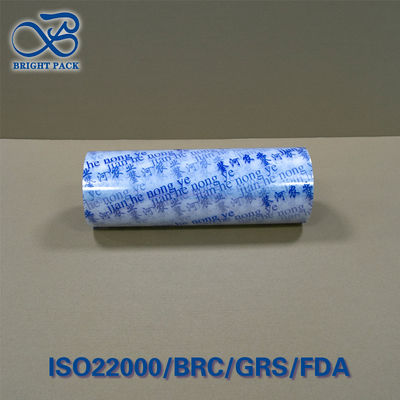

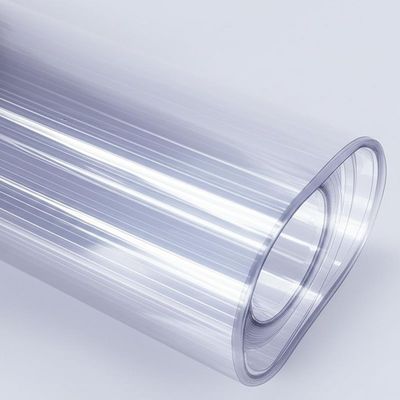

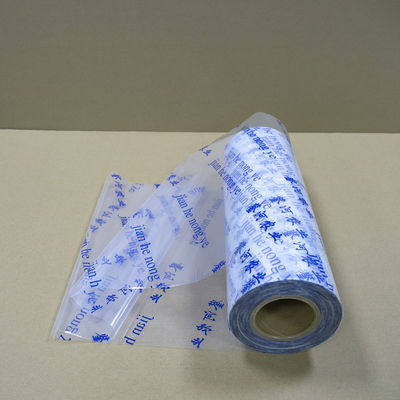

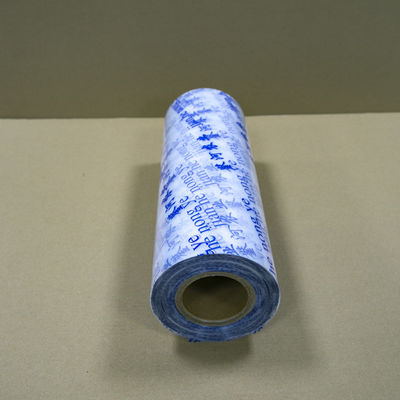

​Multi-Layer Transparent Composite Film UV Resistance Customizable Thickness 50-200μm
  • ​Multi-Layer Transparent Composite Film UV Resistance Customizable Thickness 50-200μm
  • ​Multi-Layer Transparent Composite Film UV Resistance Customizable Thickness 50-200μm
  • ​Multi-Layer Transparent Composite Film UV Resistance Customizable Thickness 50-200μm
  • ​Multi-Layer Transparent Composite Film UV Resistance Customizable Thickness 50-200μm
  • ​Multi-Layer Transparent Composite Film UV Resistance Customizable Thickness 50-200μm
​Multi-Layer Transparent Composite Film UV Resistance Customizable Thickness 50-200μm

​Multi-Layer Transparent Composite Film UV Resistance Customizable Thickness 50-200μm

Lieu d'origine Guangdong, Chine
Nom de marque Bright Pack
Certification patent for invention、BRC、GRS
Numéro de modèle B010
Détails du produit
Personnalisation:
Le soutien
Colour:
Up To 10 Colour Or No Printed
Résistant aux odeurs:
- Oui, oui.
Commande personnalisée:
Oui.
Les couleurs:
CMYK/Pantone
Échantillon:
Je suis libre.
Résistant à la perforation:
- Oui, oui.
Type d'emballage:
Emballage en vrac
Quantité par paquet:
100
Recyclable:
- Oui, oui.
Quantité:
Paquet de 100 sacs
Type de sac:
Trois côtés scellé sac debout
Bpa Free:
Yes
Couleur:
Parfait
Taille:
115 millimètres
Mettre en évidence:

UV Resistance Transparent Composite Film

,

Customizable Thickness Transparent Composite Film

,

Multi-Layer Transparent Composite Film

Conditions de paiement et d'expédition
Quantité de commande min
100 pièces
Prix
$3-3.5/kg
Détails d'emballage
Exportation d'emballages et de plaques spéciaux en carton
Délai de livraison
11-13 jours ouvrables
Conditions de paiement
T/T, Western Union
Capacité d'approvisionnement
200000 pièces par jour
Description du produit

Product Attributes Table​

Attribute Description Reference
​Material Composition​ Multi-layer coextruded structure (e.g., PET/PE/PA, PET/EVA, or PA/EVOH/PE) with UV-absorbing/reflective additives (e.g., benzotriazole derivatives, inorganic nanoparticles).
6
7
8
​UV Resistance​ Blocks ​**>99% of UV radiation (300–400 nm)​**; maintains optical/mechanical properties after 2,000+ hours of UV exposure. Additives include red-shifted UVA (e.g., CGL-0139) for long-wave UV blocking.
6
7
8
​Optical Properties​ - ​Transmittance: ​**>90%​​ (visible light, 380–780 nm)
- ​Haze**: ​​<5%​​
- ​Gloss: ​**≥85%​**​ (60° angle).
3
8
​Barrier Properties​ - ​OTR: ​​≤5 cm³/m²·day​ (23°C, 0% RH)
- ​WVTR: ​​≤2 g/m²·day​ (38°C, 90% RH).
2
3
​Mechanical Strength​ - ​Tensile Strength: ​**≥120 MPa (MD), ≥100 MPa (TD)​​
- ​Elongation at Break**: ​**≥80%​​
- ​Puncture Resistance**: ​**≥25 N**.
2
10
​Thermal Stability​ Withstands ​​-40°C to 180°C; suitable for retorting (121°C sterilization) and freezing.
3
10
​Safety & Compliance​ Complies with ​FDA 21 CFR, ​EU 10/2011, ​RoHS, and ​REACH​ for food/medical contact.
7
8
​Processing Features​ - ​Heat Sealability: ​120–180°C​ (compatible with VFFS/HFFS machines)
- ​Printability: Corona-treated surface for high-resolution flexo/gravure printing.
6
10

Product Specifications Table​

Parameter Specification Reference
​Thickness​ ​50–200 μm​ (customizable; tolerance ±5 μm); UV-blocking layer: ​0.5–5 μm.
6
10
​Width​ ​200–1,500 mm​ (extendable to 3,000 mm for industrial rolls).
10
​Roll Dimensions​ - ​Core Size: 3" (76 mm) or 6" (152 mm)
- ​Max. Roll Weight: 150 kg.
10
​Physical Properties​ - ​Density: 1.2–1.4 g/cm³
- ​Shrinkage: ≤1.5% (100°C, 30 min)
- ​Surface Energy: ≥38 dyne/cm.
3
10
​UV Resistance Metrics​ - ​UV Blocking Efficiency: >99% (300–400 nm)
- ​Accelerated Weathering Life: 2–5 years (ISO 4892).
6
7
​Functional Additives​ Optional: ​Anti-fog​ (contact angle <10°), ​anti-static​ (surface resistivity ≤10¹¹ Ω/sq), or ​EMI shielding​ (transparency >50%, SE ~40 dB).
2
8
​Sustainability​ - ​Recyclability: Mono-material PE/PP variants for single-stream recycling
- ​Biodegradable Options: PLA/PHA-based composites (ASTM D6400).
3
8
​Supply Parameters​ - ​MOQ: 500 kg
- ​Lead Time: 15–30 days
- ​Packaging: Moisture-proof EPE-foamed cartons.
