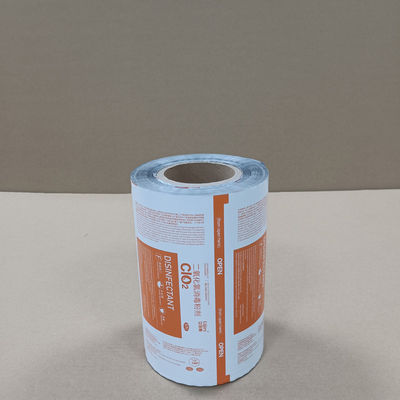

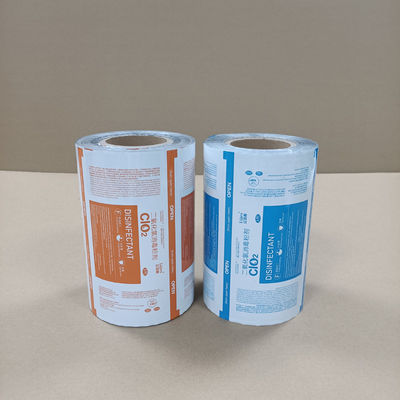

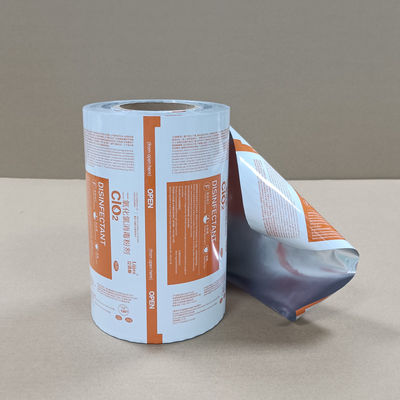

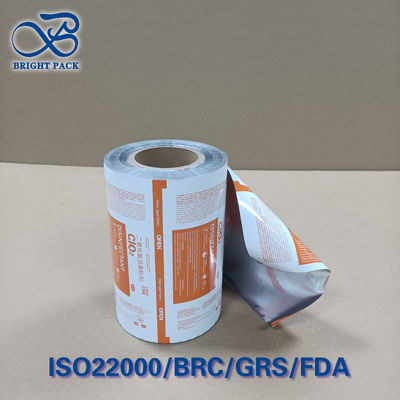

Pre-Cut ClO₂ Pouch Film For Air Sterilization Ultrasonic Sealing 100% Leak-Proof
  • Pre-Cut ClO₂ Pouch Film For Air Sterilization Ultrasonic Sealing 100% Leak-Proof
  • Pre-Cut ClO₂ Pouch Film For Air Sterilization Ultrasonic Sealing 100% Leak-Proof
  • Pre-Cut ClO₂ Pouch Film For Air Sterilization Ultrasonic Sealing 100% Leak-Proof
  • Pre-Cut ClO₂ Pouch Film For Air Sterilization Ultrasonic Sealing 100% Leak-Proof
  • Pre-Cut ClO₂ Pouch Film For Air Sterilization Ultrasonic Sealing 100% Leak-Proof
Pre-Cut ClO₂ Pouch Film For Air Sterilization Ultrasonic Sealing 100% Leak-Proof

Pre-Cut ClO₂ Pouch Film For Air Sterilization Ultrasonic Sealing 100% Leak-Proof

Lieu d'origine Guangdong, Chine
Nom de marque Bright Pack
Certification patent for invention、BRC、GRS
Numéro de modèle B010
Détails du produit
Personnalisation:
Le soutien
Couleur:
Jusqu'à 10 couleurs ou pas d'impression
Résistant aux odeurs:
- Oui, oui.
Commande personnalisée:
Oui.
Les couleurs:
CMYK/Pantone
Échantillon:
Je suis libre.
Résistant à la perforation:
- Oui, oui.
Type d'emballage:
Emballage en vrac
Quantité par paquet:
100
Recyclable:
- Oui, oui.
Quantité:
Paquet de 100 sacs
Type de sac:
Trois côtés scellé sac debout
Non lié au BPA:
- Oui, oui.
Couleur:
Parfait
Taille:
115 millimètres
Mettre en évidence:

Pre-Cut ClO₂ Pouch Film

,

Leak-Proof ClO₂ Pouch Film

,

Ultrasonic Sealing ClO₂ Pouch Film

Conditions de paiement et d'expédition
Quantité de commande min
100 pièces
Prix
$3-3.5/kg
Détails d'emballage
Exportation d'emballages et de plaques spéciaux en carton
Délai de livraison
11-13 jours ouvrables
Conditions de paiement
T/T, Western Union
Capacité d'approvisionnement
200000 pièces par jour
Description du produit

​Product Attributes​

Attribute Description
​Material Structure​ Multi-layer composite: ​PET outer layer​ (UV blocking/mechanical strength), ​Aluminum foil core​ (7–12 µm for O₂/H₂O barrier), ​Specialized inner layer​ (ClO₂-compatible chemistry), ​Optional hydrophilic non-woven layer​ for controlled release
2
6
​Primary Function​ Enables slow ClO₂ release (0.1–0.5 ppm/h) for air sterilization; ultrasonic cold-sealing prevents thermal decomposition (>80°C)
8
9
​Barrier Technology​ Aluminum foil ensures ​OTR ≤0.05 cm³/m²/day​ (ASTM F1249) + ​WVTR ≤0.5 g/m²/day​ (ASTM D3985); PET blocks 99% UV light (200–400nm) to inhibit photolysis
3
6
​Seal Integrity​ Ultrasonic sealing achieves ​**≥20 N/15mm bond strength**​ (ASTM F88) without heat; 100% leak-proof validated via helium testing (sensitivity: 1×10⁻⁹ mbar·L/s)
8
10
​Release Mechanism​ Hydrophilic non-woven layer regulates humidity-triggered ClO₂ diffusion (60-day sustained release)
4
​Certifications​ FDA 21 CFR, ISO 22000 (indirect food contact); EPA-compliant for disinfectant packaging
3
​Sustainability​ Recyclable PET/AL/PE structure; EN13432-certified PLA variants available (180-day soil decomposition)
7

​Product Specifications​

Parameter Specification Test Standard
​Thickness​ 80–150 µm (120 µm standard) ISO 4593
​OTR (Oxygen Transmission Rate)​​ ≤0.05 cm³/m²/day ASTM F1249
​WVTR (Water Vapor Transmission Rate)​​ ≤0.5 g/m²/day ASTM D3985
​ClO₂ Release Rate​ 0.1–0.5 ppm/hour (60-day duration) Custom chamber testing
​Ultrasonic Seal Strength​ ≥20 N/15mm ASTM F88
​Puncture Resistance​ ≥35 N ASTM D7192
​Thermal Stability​ -40°C to 100°C ASTM D882
​Pre-Cut Pouch Dimensions​ 50×80 mm, 80×120 mm, 100×150 mm (customizable) N/A
​Gusset Options​ Flat (3-side seal) or plow bottom N/A
​Roll Configuration​ ​Width: 200–1,000 mm
​Length: 1,000–5,000 m
​Core ID: 76 mm (3") or 152 mm (6")		 N/A
​MOQ & Logistics​ ​MOQ: 500 kg
​Lead Time: 15–20 days
​Packaging: Wooden pallets, moisture-proof wrap
